Payment Node: Collect a Payment Inside a Flow

The Payment node — Collect payment on the canvas — takes money inside the conversation, so a flow can go from interest to paid without sending the contact off to a checkout page you built somewhere else.

The node creates the link. It doesn’t send it.

This is the one thing to get right. Collect payment asks your gateway for a payment link and saves it to a user field. Nothing reaches the contact until a Send message node after it puts that field into a message. Wire the node, skip the message, and the flow charges no one — the link is created and then sits there unread.

Setup

Add the node → connect a payment gateway → set the amount and what it’s for → send the link → wire up the success and failure paths.

The panel is a short wizard. The first time, it’s four steps — you’re connecting a gateway before you can charge anything. Once an account is connected it drops to two, because the connect steps are behind you.

Step 1 — Connect a payment gateway

A new node shows Connect payment gateway instead of an amount. Click it and pick your provider:

Provider	Takes	Notes
Stripe	Cards, wallets · 135+ currencies	Best for international customers
Razorpay	UPI, cards, netbanking	Best for customers paying in India

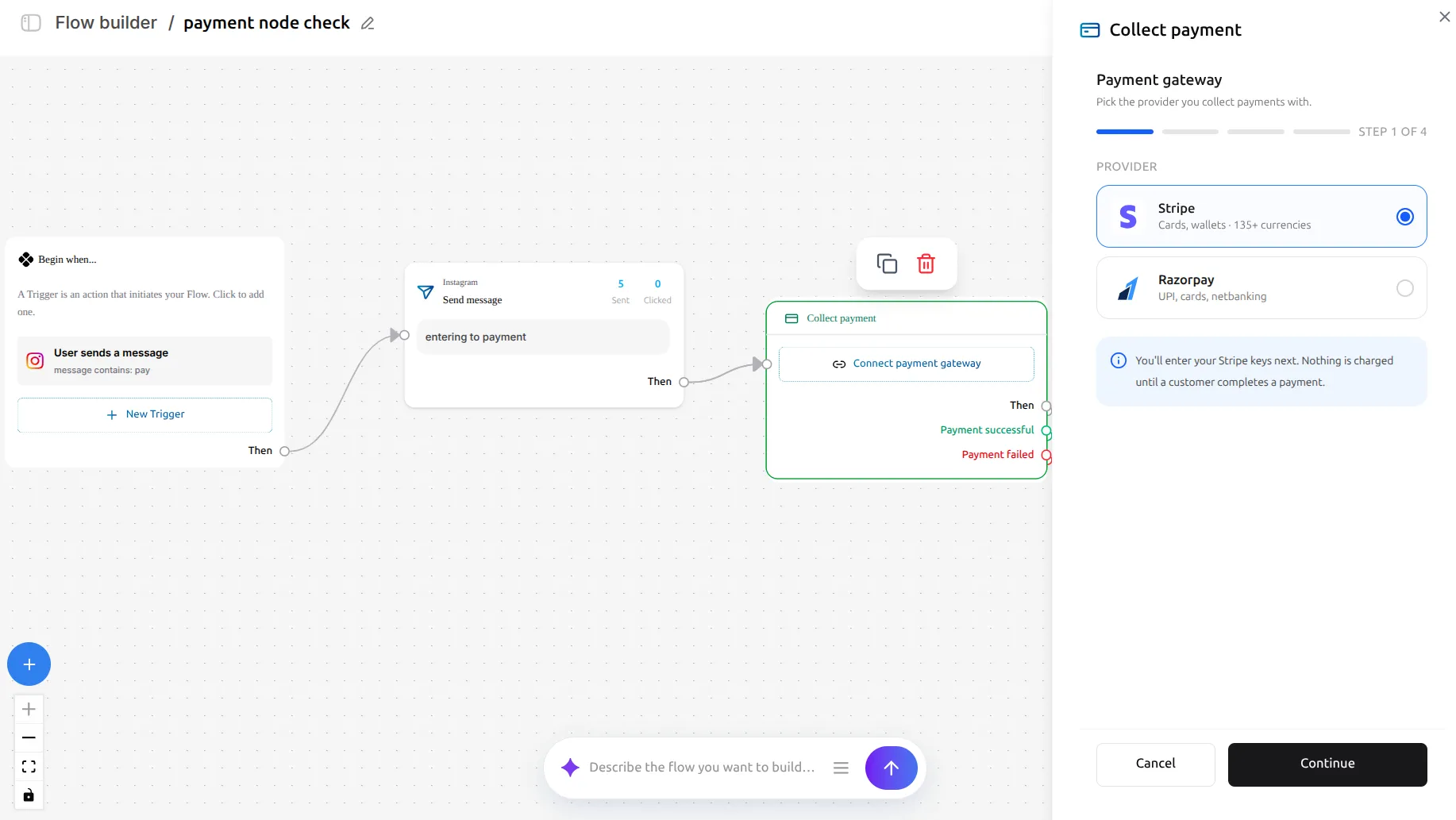

Step 1: pick the provider. Nothing is charged until a customer completes a payment.

Step 2 — Enter your API keys

Whichever provider you picked, LinktoDM needs keys from that account to create links on your behalf.

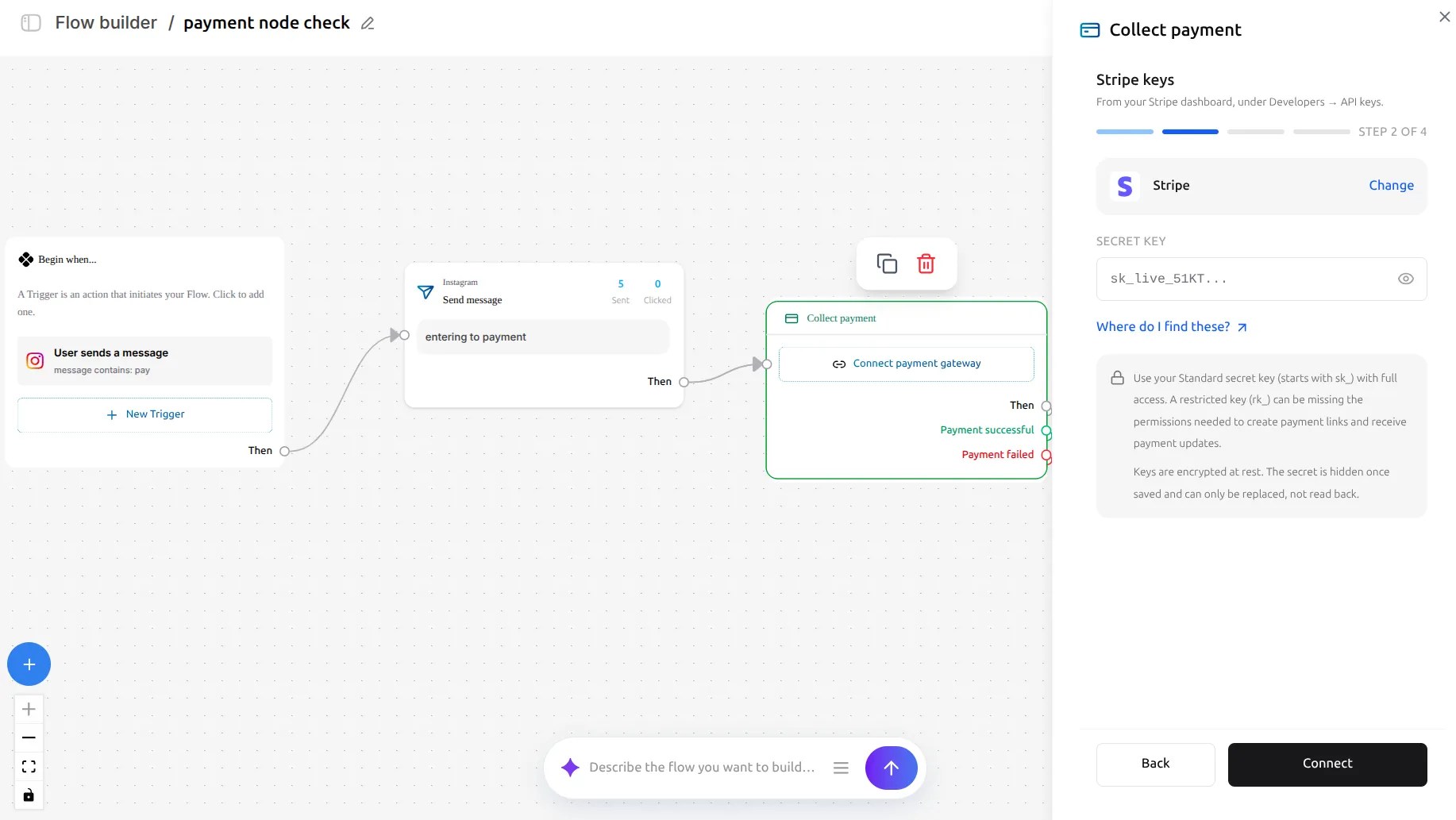

Stripe — from your Stripe dashboard, under Developers → API keys. One field: the secret key.

Stripe wants a Standard secret key — one that starts with sk_

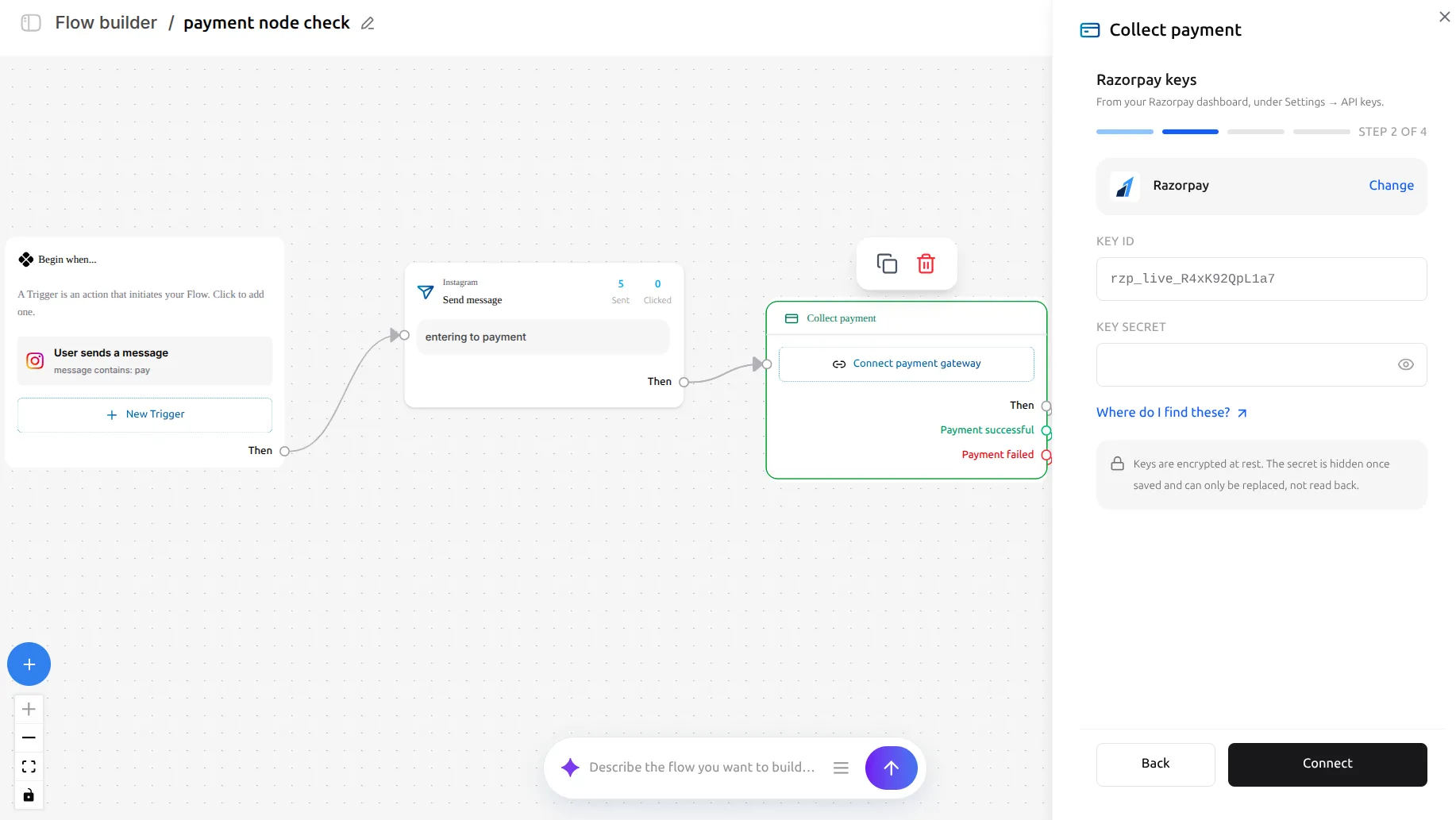

Razorpay — from your Razorpay dashboard, under Settings → API keys. Two fields: Key ID and Key secret.

Razorpay needs both halves: the Key ID and its secret

Use a standard Stripe key, not a restricted one

A restricted key (rk_) can be missing the permissions needed to create payment links and receive payment updates, and the failure shows up later as links that never generate. Use the Standard secret key (sk_) with full access.

Keys are encrypted at rest. The secret is hidden once saved and can only be replaced, never read back — so if you need it again, get a fresh one from your provider’s dashboard.

Click Connect and the account is saved to your workspace. Every later Payment node picks it from a list instead of asking for keys again.

Connected accounts, with the account ID under each name — a Test badge means test keys

A Test badge on a row means that account is on test keys. Real cards won’t be charged, which is what you want while you’re building the flow — and what you must remember to swap before publishing it.

Step 3 — Set the amount

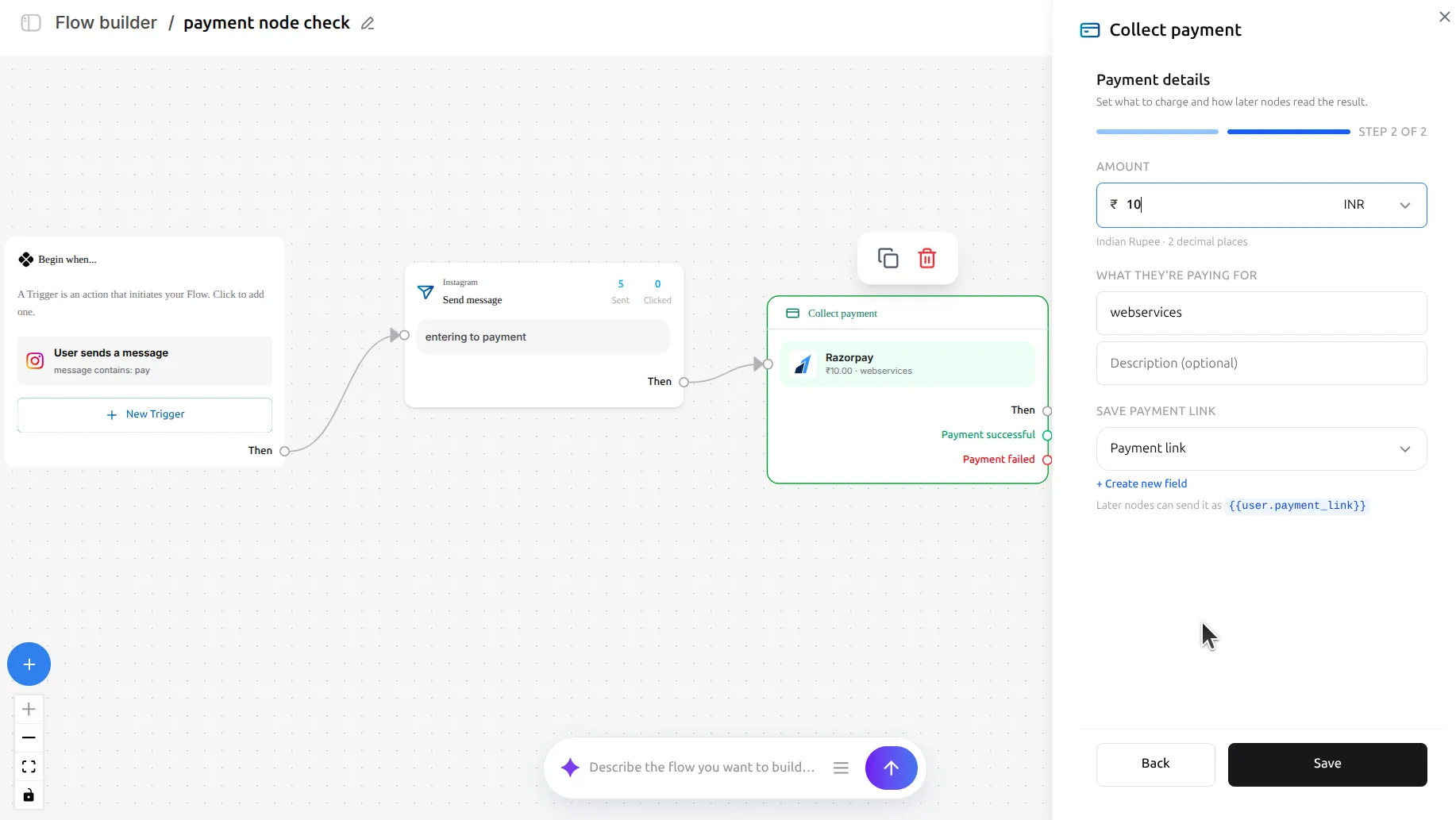

Payment details: what to charge, what it's for, and which field holds the link

Field	What it does
Amount	The charge, plus the currency it’s in. The panel reads back the currency and its decimal places — Indian Rupee · 2 decimal places
What they’re paying for	The line item the customer sees at checkout, and the label on the node afterwards
Description	Optional detail under it
Save payment link	The user field the generated link is written to. + Create new field makes one without leaving the panel

The panel tells you the variable it just created: later nodes can send the link as {{user.payment_link}}.

Save, and the node on the canvas shows the charge it will create — Razorpay · ₹10.00 · webservices — so you can read a flow’s pricing without opening it.

Step 4 — Send the link

The node now has three handles down its right edge:

Handle	Fires when
Then	The link has been created — immediately, before anyone pays
Payment successful	The customer completes the payment
Payment failed	The payment doesn’t go through

Then is the one that matters here. Wire it to a Send message node, and in the message body type {{ — the user field picker opens with the payment fields in it.

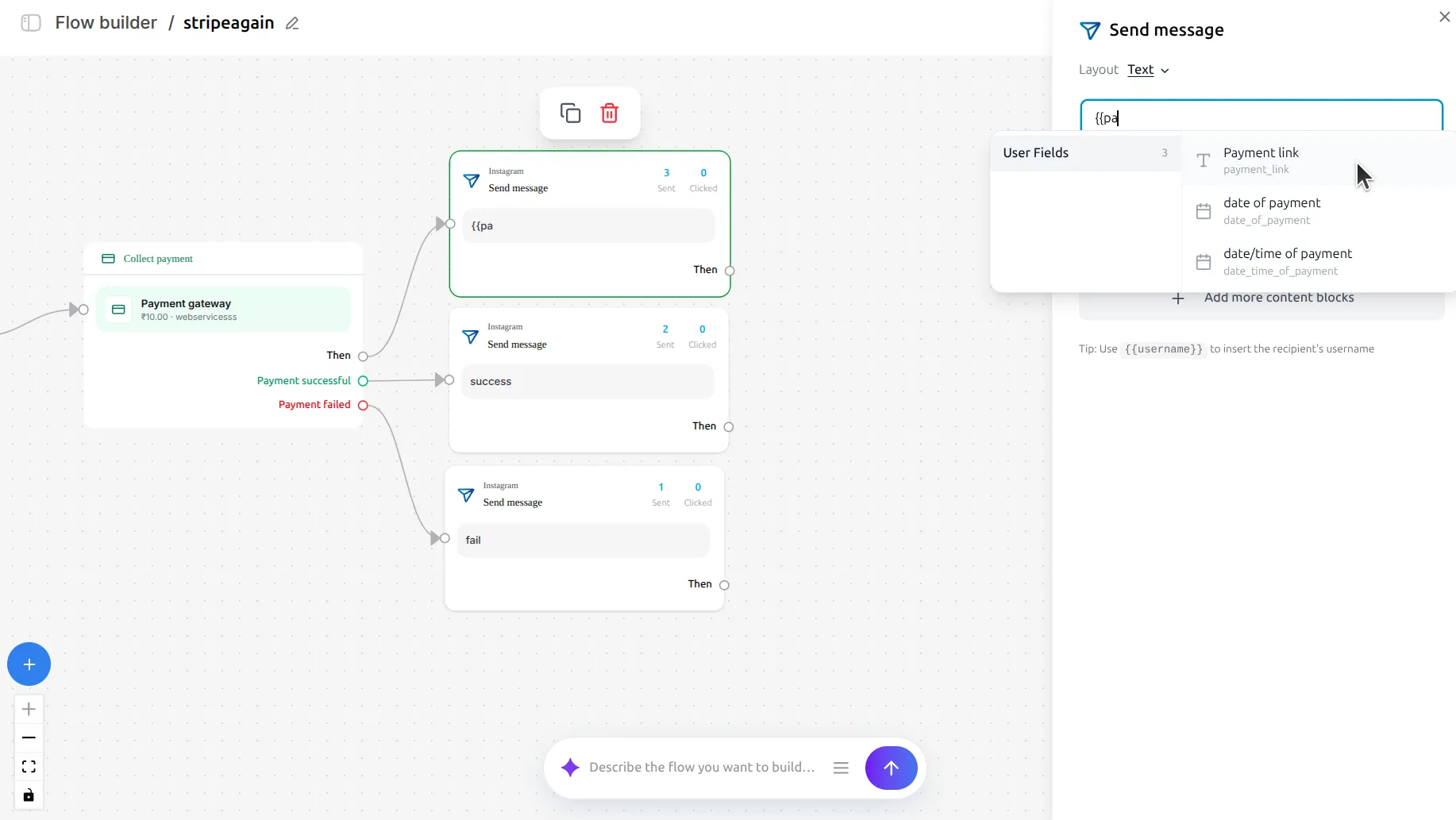

Typing {{ in a message offers the fields the Payment node fills in

Pick Payment link and it drops in as a chip. That message is what the contact actually receives — the tappable link that opens checkout.

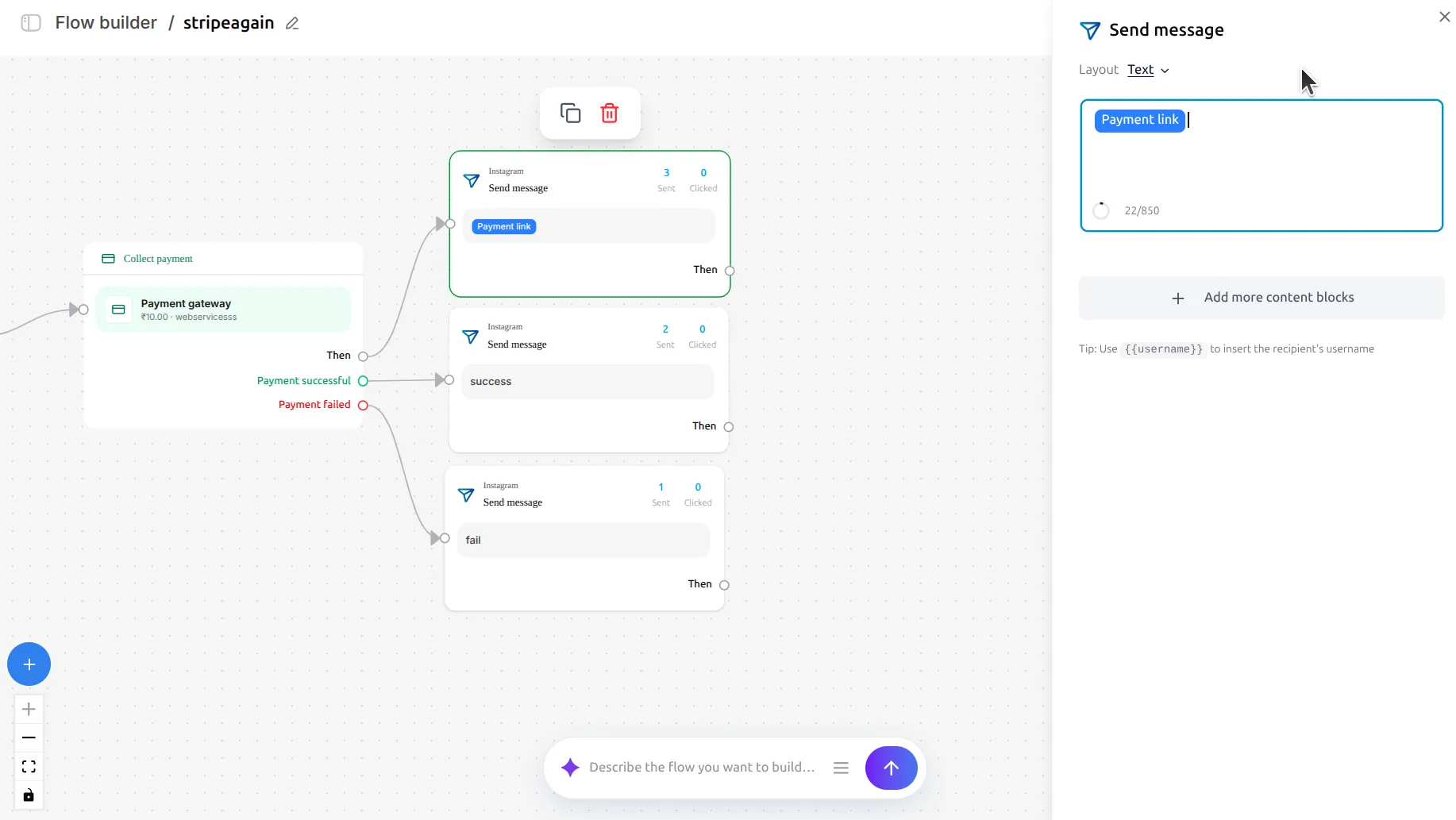

The finished shape: link on Then, confirmation on Payment successful, recovery on Payment failed

Three fields come out of the node, all available the same way:

• payment_link — the checkout link
• date_of_payment — the date it was paid
• date_time_of_payment — the date and time

Example flow

Trigger: message contains "pay"
  ↓
Send message: "Here's the link 👇"
  ↓
Collect payment: ₹10.00 · webservices
  ├── Then              → Send message: {{payment_link}}
  ├── Payment successful → Send message: "Payment received — here's your access"
  └── Payment failed     → Send message: "That didn't go through. Try again?"

Leave Payment successful or Payment failed unwired and the flow just stops for whoever lands there — a paying customer hearing nothing back is the worst version of a dead end.

Pro Tip

Test the whole path on a second account with test keys before you publish, and follow it all the way to the confirmation message. The node reporting success only means the gateway said so — it doesn’t tell you the contact ever got a link they could tap.
